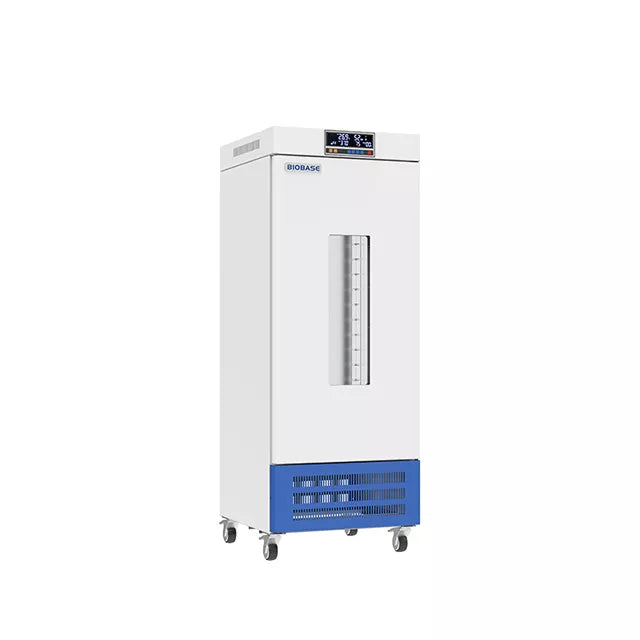

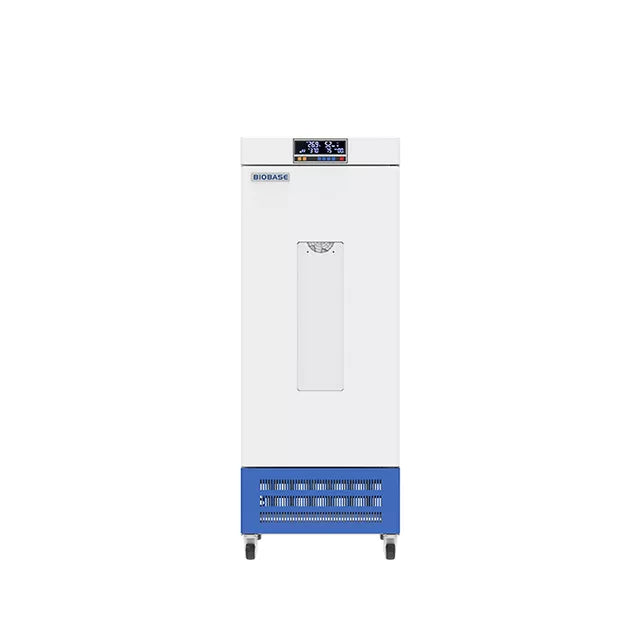

Mould Incubator(BJPX-MN)
Mould Incubator(BJPX-MN)
Couldn't load pickup availability
Application:
This series of products are widely used in medical and health, animal husbandry research, environmental protection, agricultural scientific research and other fields.
Features:
1. LCD display.
2. The refrigeration adopts a new fluorine-free design to ensure green and environmental protection.
3. With parameter memory function, the call will automatically resume operation.
4. The inner box is designed with a circular arc structure, which is easy to clean.
5. Pullable movable shelves with adjustable spacing.
6. The inner box is equipped with a fan to form a micro air circulation to improve the temperature uniformity in the box.
7. Outer box material: cold-rolled steel plate sprayed on the surface; internal material: SUS304 stainless steel plate
Technical Parameters:
|
Model |
BJPX-M80N |
BJPX-M100N |
BJPX-M150N |
BJPX-M200N |
BJPX-M250N |
BJPX-M300N |
BJPX-M400N |
|
Capacity(L) |
80 |
100 |
150 |
200 |
250 |
300 |
400 |
|
Temp. Sensor |
PT100 |
||||||
|
Temp. Range |
0~65℃ |
||||||
|
Temp. Fluctuation |
±1℃ |
||||||
|
Temp. Uniformity |
±2℃ |
||||||
|
Temp. Precision |
0.1℃ |
||||||
|
Timing Range(min/h) |
0~9999 |
||||||
|
Humidity Range |
50％~90％ |
||||||
|
Humidity Control Accuracy |
1%RH |
||||||
|
Humidity Control Fluctuation |
±5％~±8%RH |
||||||
|
Refrigerant |
R134a |
||||||
|
Sterilization Method |
UV sterilization lamp(Timetable setting) |
||||||
|
Power Supply |
Standard: AC220V, 50/60Hz Optional: AC110V, 60Hz |
||||||
|
Consumption |
1200W |
1200W |
1200W |
1300W |
1300W |
1500W |
1500W |
|
Shelves |
2 |
||||||
|
Standard Accessories |
UV sterilization lamp, Shelf*2 |
||||||
|
Optional Accessories |
USB interface, Printer, Shelf |
||||||
|
Internal Size(W*D*H)mm |
400*370 *560 |
400*370 *680 |
450*420 *850 |
450*450 *1000 |
480*490 *1070 |
520*500 *1170 |
580*540 *1270 |
|
External Size(W*D*H)mm |
540*580 *1110 |
540*580 *1230 |
590*630 *1390 |
590*660 *1540 |
620*700 *1610 |
660*700 *1710 |
720*760 *1810 |
|
Package Size(W*D*H)mm |
670*710 *1400 |
670*710 *1400 |
720*760 *1560 |
720*790 *1710 |
750*830 *1780 |
790*830 *1880 |
850*880 *1980 |
|
Net Weight(kg) |
70 |
75 |
95 |
100 |
110 |
120 |
140 |
|
Gross Weight(kg) |
90 |
95 |
130 |
148 |
157 |
167 |
180 |
Notice: It cannot be used for long-term refrigeration and storage.
