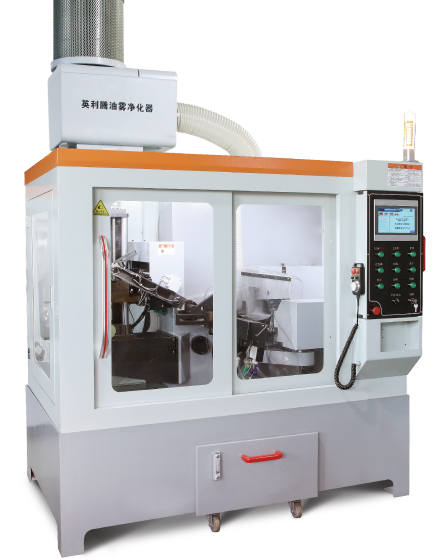

MLQ-300F Full Automatic Face Angle Grinding Machine (Robot Arm)
MLQ-300F Full Automatic Face Angle Grinding Machine (Robot Arm)
Regular price
1 som
Regular price
Sale price
1 som
Unit price
/
per
Couldn't load pickup availability
Machine features
● This machine is for professional level carbide saw blade face angle grinding.
● Adopts closed environmentally friendly design protection, the robot can load and unload blades automatically, so one person can operate 10-15 machines.
● Adopts OMRON PLC, Mitsubishi servo motor with excellent steel structure, feed rate can be set with micro feed function. Stable performance with hi-win brand ball screw and precision linear sliding rail, high vertical grinding accuracy.
● Complete all tooth geometry grinding at one time, with grinding programs commonly used for various tooth profiles, like flat tooth, ATB, ABTR etc..
Technical dates
| Blade diameter | ф100—ф315mm（ф76—ф260mm） |
| Arbor Size | ф12—ф50mm（Special specifications can be customized） |
| Tooth pitch | 5—65mm |
| Front Angle | -5°—+30° |
| Front bevel angle | -15°—15° |
| Grinding length | 0—25mm |
| Grinding precision | ≤0.02mm |
| Grinding Speed | 20 (T/min) |
| Diamond wheel | ф125xф20x3mm |
| Diamond wheel grit | 220# 280#(Recommended Use) |
| Working air pressure | ≥0.5MPA |
| Total power | 3KW |
| Weight | 1960kg |
| Dimensions | 1860X1368×2603mm |
